fdj, fdm滑动(推拉)开关

fdj, fdm series slide (push-pull) switches

产品描述product description

fdj, fdm系列是迷你型的小型推拉开关,也叫滑动开关,应用于各类需要微电流档位控制的电器,如:迷你型螺丝起子、充电灯等。
fdj, fdm series are mini type slide switches, commonly for used in micro current appliances such as mini screwdrivers, rechargeable lights, etc.

技术数据technical data

→机械耐久寿命 mechanical life endurance≥5e4
→电气耐久寿命 electrical life endurance≥1e4
→最大电流 max. current6a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function500v
→加强介电强度 diele ctric strength of reinforced500v
→环境温度 ambient temperature0°c~85°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii

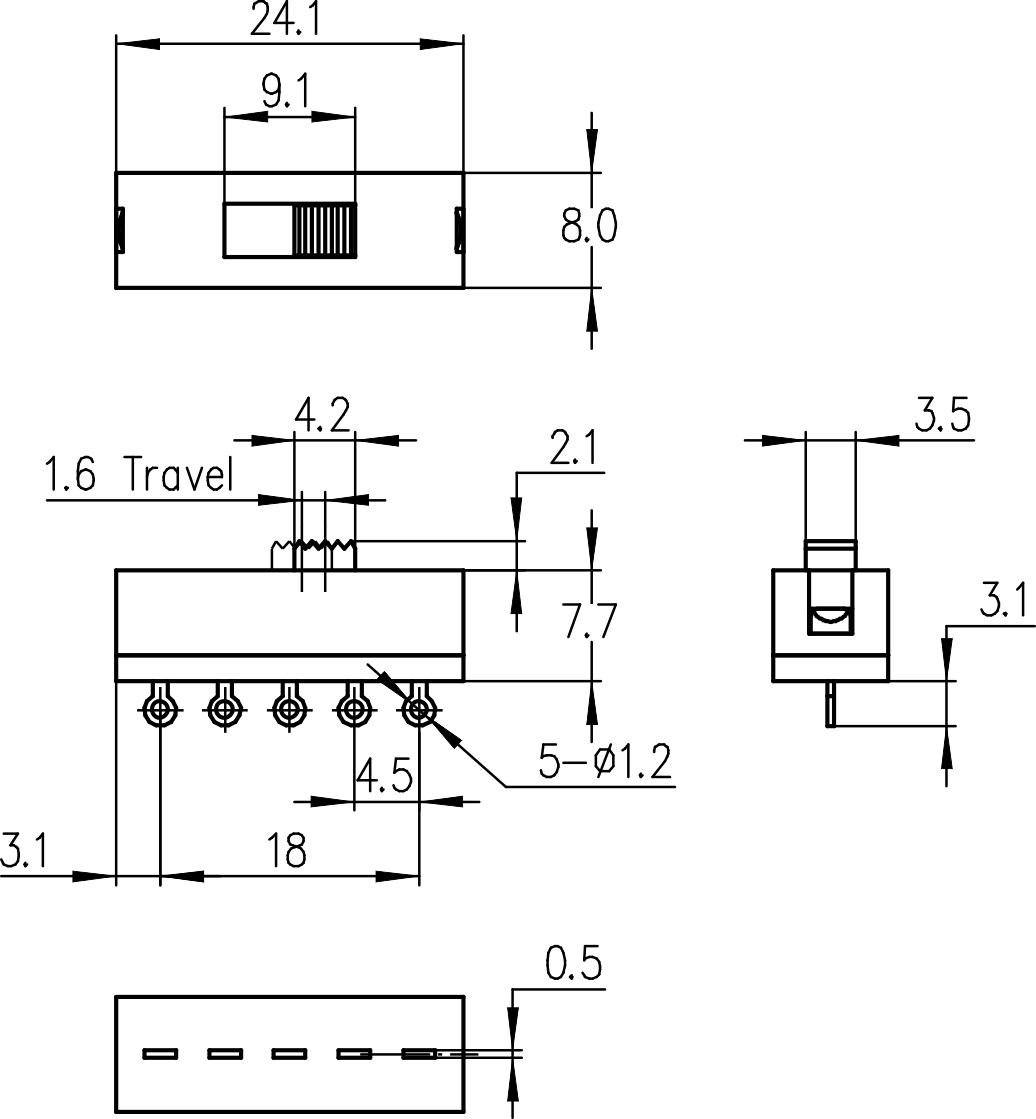

端子类型terminals

◆输入端/输出端 input side/output side:
→焊接端子 soldering terminals φ=1.2mm
→线路板焊接端子 pcb soldering terminals 1.0×0 8mm

电气参数和认证 electric rating and certification
